Mijas Pueblo, Costa del Sol · 2024

Mediterranean Oak Kitchen

Type

Kitchens

Surface

16 m²

Duration

4 weeks

Year

2024

Budget

Mid-Range

Project Overview

A 16 m² Mediterranean kitchen in a Mijas Pueblo townhouse, designed deliberately around wood, sage green and handmade ceramics — no marble. The original kitchen was a builder-grade 2002 fit-out with white melamine cabinets, beige granite-effect laminate worktops and 30×30 cm beige floor tiles. We replaced everything with solid European oak upper cabinetry, muted sage green lacquered lower units, a plain matte cream ceramic-look quartz worktop (no veining), and a handmade terracotta zellige tile splashback that gives the kitchen real Mediterranean character. The result is warm, tactile and timeless — the antithesis of a cold marble kitchen.

01

Client Brief & Initial Assessment

Finished oak and sage green Mediterranean kitchen

The owners — a British family who had recently renovated the rest of their Mijas Pueblo townhouse — came to Magnum Reformas with a single explicit instruction: "warm and Spanish, not white and shiny". They had visited several other reform companies on the Costa del Sol and felt every kitchen looked identical: white handleless cabinets, marble waterfall island, integrated everything. They wanted real wood that could be sanded and re-oiled in 20 years, ceramic that showed the artisan's hand, and a colour palette rooted in the Andalusian landscape — sage greens, terracotta, oak honey. The kitchen footprint was a generous 16 m² with a small north-facing window over the sink and a doorway through to the dining room — no structural changes were needed.

Technical Specifications

Kitchen size16 m² L-shape, no island, breakfast bar peninsula
Existing condition2002 builder-grade — white melamine, beige granite-effect laminate, 30×30 cm floor tiles
BriefWarm Mediterranean palette: solid wood, ceramic, sage green. Explicitly no marble
Structural changesNone — same footprint, same window, same doorway
02

Material Selection at the Showroom

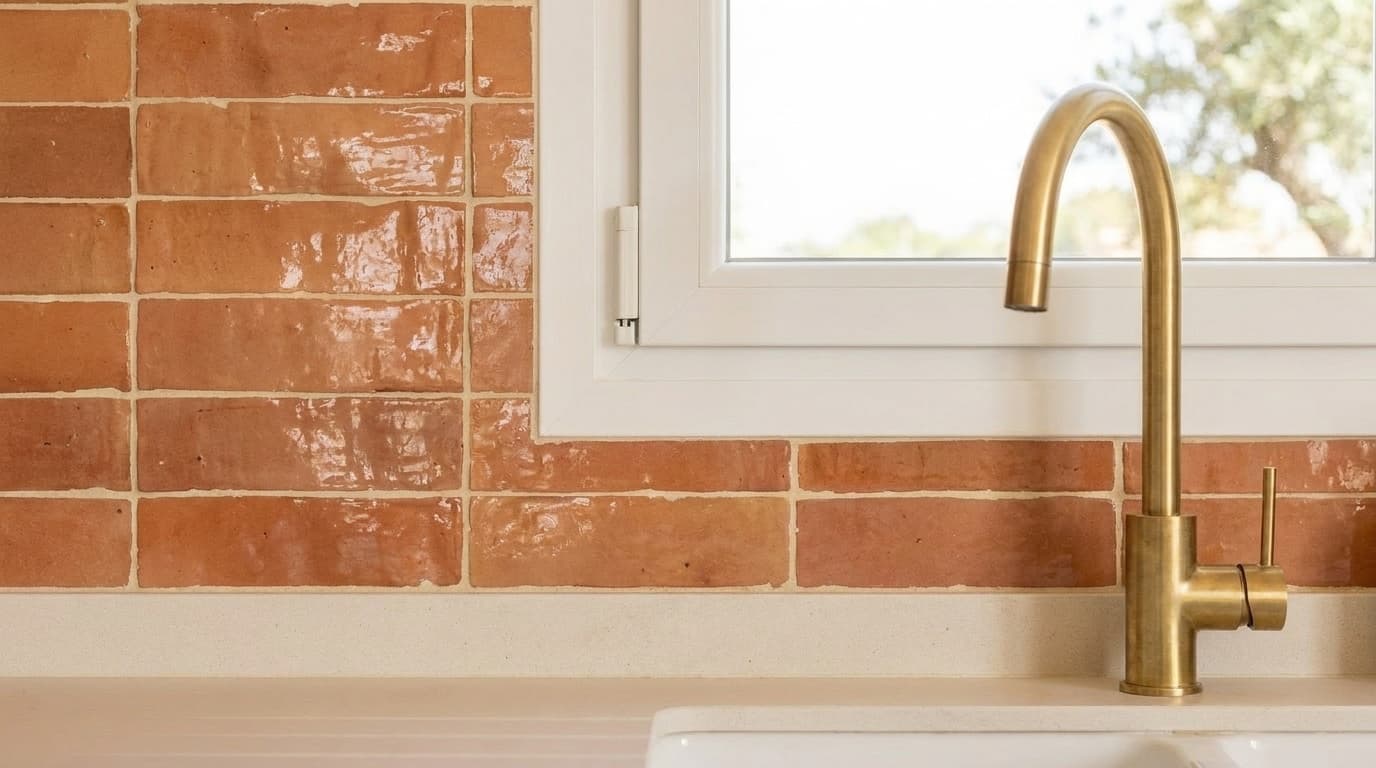

Handmade terracotta zellige splashback — close-up

The showroom session was unusually long — almost four hours — because the client wanted to handle every wood and ceramic option physically. The upper cabinetry was specified in solid European oak with vertical grain and a natural matte hardwax-oil finish — Osmo PolyX-Oil 3032, breathable, repairable, and beautifully tactile. The lower cabinets were sampled in five greens before settling on NCS S 5010-G30Y, a muted dusty sage that reads green in daylight and almost grey-green at night. The worktop was the area where the "no marble" rule mattered most: the client chose Silestone Faro White in matte (Suede) finish — a plain warm cream with no veining at all, the antithesis of Calacatta. The splashback tiles were the showpiece: handmade Moroccan zellige in terracotta-rojo, sourced from a Marrakech atelier, 5×15 cm, each tile slightly different.

Technical Specifications

Upper cabinetrySolid European oak, vertical grain, Osmo PolyX-Oil 3032 hardwax-oil natural matte
Lower cabinetryMDF lacquered NCS S 5010-G30Y muted sage green, satin sheen, brushed brass cup-handles
WorktopSilestone Faro White Suede matte 20 mm — plain warm cream, NO veining (deliberate non-marble)
SplashbackHandmade Moroccan zellige 5×15 cm terracotta-rojo, cream grout 3 mm joints
FlooringEngineered European oak chevron, 600×120 mm, brushed and oiled honey tone
03

Strip-out, Plumbing & Electrical First-Fix

The old kitchen was stripped in two days: cabinets disassembled and donated to a local recycling cooperative, worktops removed in sections, splashback tiles chipped off and the wall taken back to brick. The 2002 plumbing was a single hot-cold pair feeding the sink and a separate cold tap for the dishwasher — completely inadequate for a modern kitchen with double sink, dishwasher and water filter. We installed all new copper plumbing first-fix: dual outlets to the sink area for the main mixer and a separate filtered-water tap, a dedicated isolation valve for the dishwasher, and capped points for a future ice-maker fridge. The electrical first-fix added eight 16A sockets at worktop level (replacing four), a dedicated 32A circuit for the induction hob, and concealed cable runs for under-cabinet LED lighting. The brick wall was then re-skimmed with a 5 mm gypsum plaster ready for tiling.

Technical Specifications

Plumbing first-fixAll new copper hot/cold + filtered water tap + dishwasher isolation + capped ice-maker point
Electrical first-fix8 × 16A worktop sockets, 32A induction circuit, under-cabinet LED runs, dedicated extractor circuit
Wall preparationStripped to brick, 5 mm gypsum plaster skim, primed ready for tile adhesive
04

Cabinetry, Worktop & Zellige Splashback

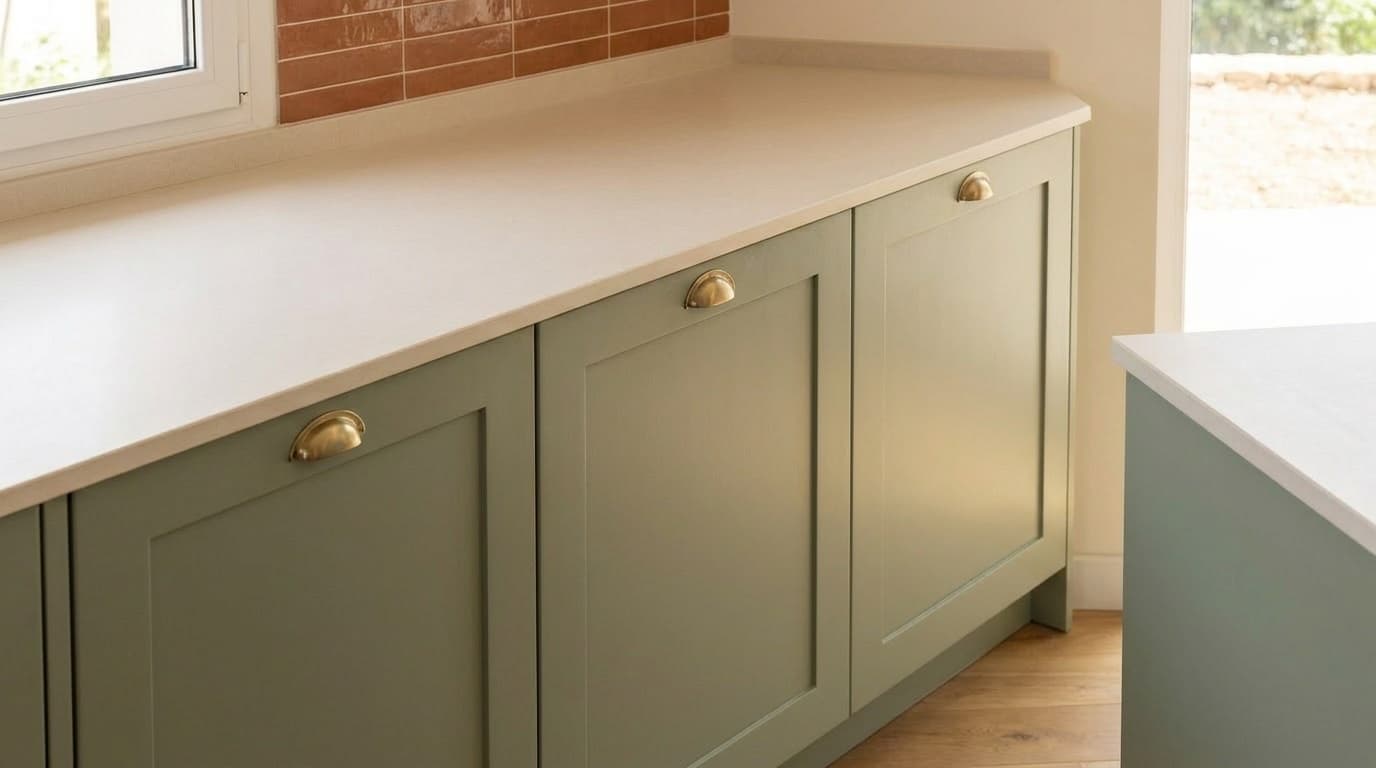

Sage green lower cabinets with brushed brass cup-handles

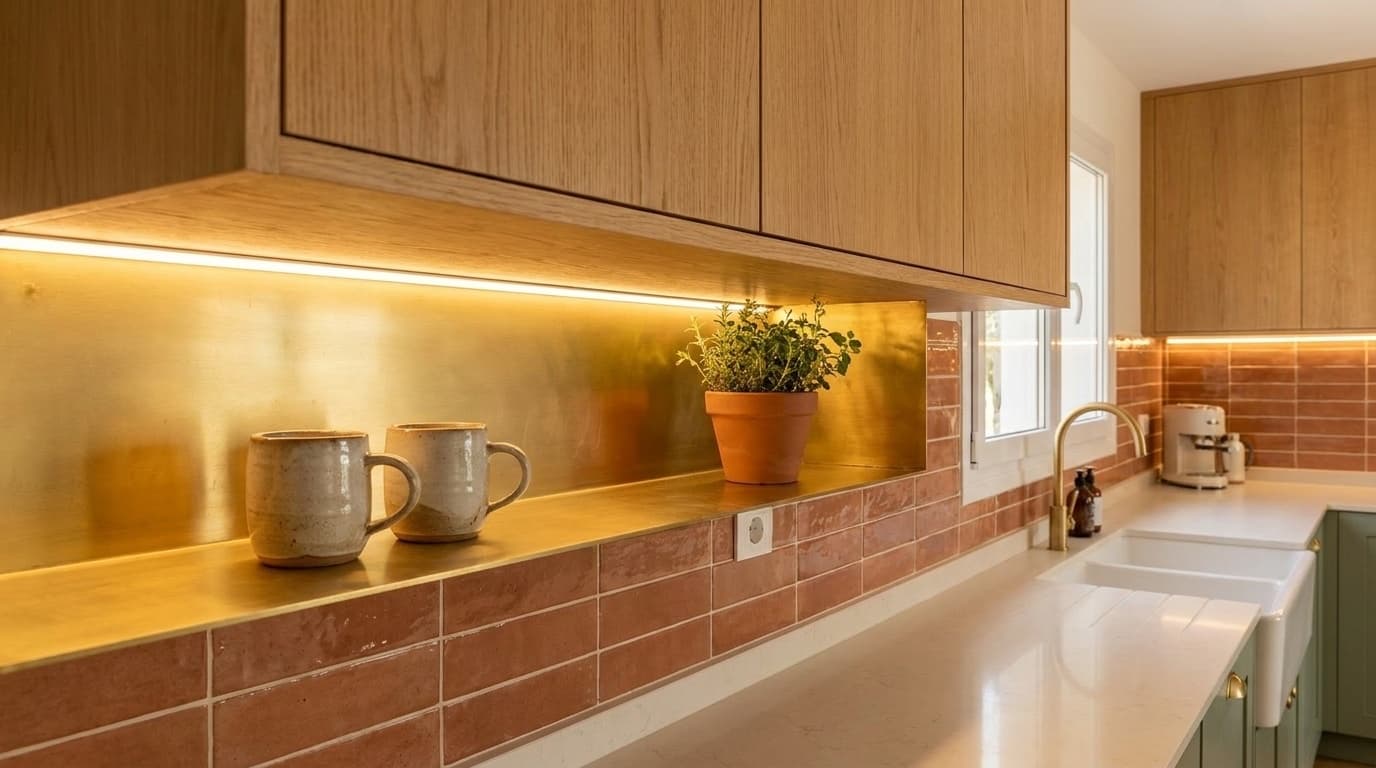

Solid oak upper cabinetry with under-cabinet brass shelf

The oak engineered chevron flooring was laid first across the whole kitchen — installed glued-down on a 5 mm acoustic underlay, with a perimeter expansion gap hidden under the cabinet plinths. The lower sage-green cabinetry was assembled and levelled across the L-shape, then the Silestone Faro White Suede worktop was templated, cut and installed in two pieces with an invisible mitre joint at the corner. The handmade zellige splashback was the most delicate part of the install — each tile is ever-so-slightly different in size and curvature, so our tiler set them by eye over four days, hand-checking horizontal lines with a laser level. The cream grout was applied in a single careful pass and immediately wiped to keep the tiles' uneven surface visible. Upper oak cabinetry was hung last, with integrated finger-pull rails on the underside so no handles interrupt the vertical wood grain.

Technical Specifications

Floor installationEngineered oak chevron, glued on 5 mm acoustic mat, perimeter expansion under plinth
Worktop installSilestone Faro White Suede 20 mm, two pieces with invisible mitred corner joint
Zellige tilingHand-laid over 4 days, laser-checked horizontal courses, cream grout 3 mm joints
Upper cabinet handlesContinuous brushed brass finger-pull rail on underside — no door handles interrupting grain
05

Appliances, Lighting & Final Snagging

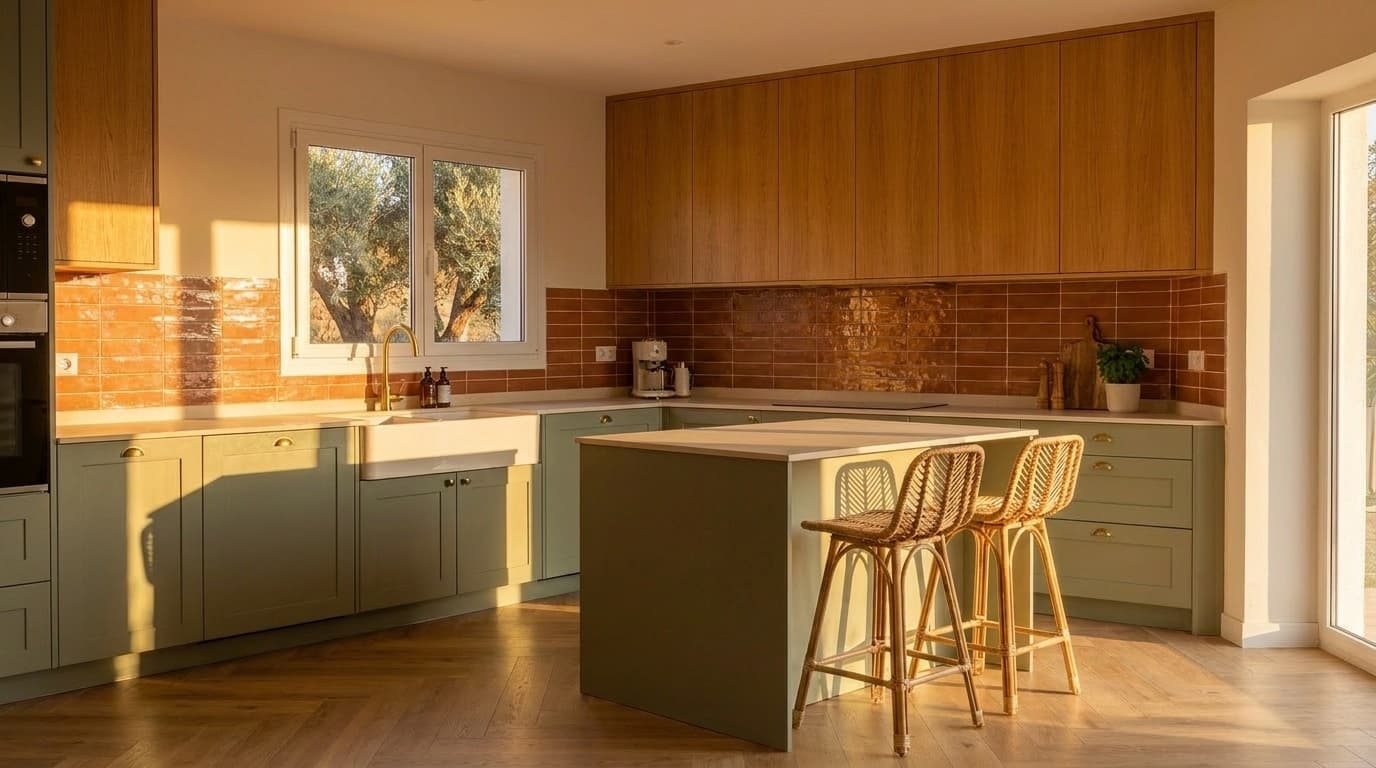

Kitchen at golden hour — warm side-light through window

The appliance package was kept deliberately simple to suit the cottage character of the property: Bosch Series 6 induction hob flush-mounted in the worktop, Bosch oven in a tall housing unit faced in oak, free-standing Smeg FAB28 fridge in cream as a deliberate retro accent, and a discreet recirculating extractor hidden behind a perforated oak panel. Lighting is layered: warm 2700 K under-cabinet LED strips for task light, three small hanging brass pendants over the breakfast bar peninsula, and a single pendant over the sink window. No downlights in the ceiling — the client wanted no "hotel grid" effect. The brass cup-handles were the very last fixings, hand-positioned and tightened by our cabinet maker. Final snagging at week 4 found two minor adjustments to soft-close hinges and one zellige tile that had drifted 2 mm out of alignment overnight — both resolved within the same day.

Technical Specifications

HobBosch Series 6 PXX875D34E induction 80 cm, FlexInduction zones, flush-fit
Oven & extractorBosch Series 6 pyrolytic oven in oak tower, recirculating extractor behind perforated oak panel
FridgeSmeg FAB28 cream — free-standing retro accent piece (deliberate non-integrated)
Lighting2700 K under-cabinet LED + 3 brass pendants over peninsula + 1 pendant over sink. No ceiling downlights
06

How We Work With You

Every Magnum Reformas project begins with a free site visit from a dedicated project manager — no obligation, within 48 hours of enquiry. We provide a fully itemised fixed-price quote: every line of work is listed, nothing is hidden. Once approved, our team manages every trade on site so you never coordinate subcontractors yourself. A dedicated WhatsApp group keeps you updated with photos and videos throughout. At handover, we walk you through every installation and leave you a full documentation pack.

Technical Specifications

Site VisitFree, no obligation, within 48 hours of enquiry
Fixed QuoteFully itemised, fixed price — no hidden extras
Material SelectionEvery finish chosen by you at our Marbella showroom
Weekly ReportingPhoto & video updates via WhatsApp or email throughout the build

Photo Gallery

Mediterranean oak and sage green kitchen — overview
Handmade terracotta zellige splashback
Sage green lacquered lower cabinets and brass cup-handles
Solid oak uppers with under-cabinet brass shelf
Kitchen at golden hour — warm low side-light
