Marbella Golden Mile, Costa del Sol · 2024

White Marble Kitchen

Type

Kitchens

Surface

18 m²

Duration

5 weeks

Year

2024

Budget

Premium

Project Overview

A full transformation of an 18 m² kitchen in a Marbella Golden Mile penthouse. The original kitchen was a closed galley with dated beige laminate cabinets, visible chrome handles and dark floor tiles. We removed the dividing wall, created a Calacatta Gold marble island with a dramatic waterfall edge, fitted floor-to-ceiling white lacquered handleless cabinetry, and integrated every Siemens appliance invisibly behind matching panels. The result: a seamless white plane that opens to a Mediterranean sea view through floor-to-ceiling windows.

01

Client Brief & Initial Assessment

Completed white kitchen — Calacatta Gold island and sea view

The client — an international property owner who uses the penthouse as a holiday and rental property — came to us with a clear brief: the kitchen had to look magazine-quality, function efficiently for a professional chef when renting the property, and require minimal maintenance. The original galley measured only 14 m² and felt cramped and dark. A structural survey confirmed that the wall separating the kitchen from the dining terrace could be safely removed, expanding the usable area to 18 m² and creating a direct visual connection to the sea view. The client approved a full gut-out: every surface, every fitting, every tile was to be replaced.

Technical Specifications

Original size14 m² closed galley
New size after wall removal18 m² open-plan kitchen-dining
Structural workNon-structural wall removed, RSJ lintel installed above opening
Project typeFull kitchen gut and refit — floor, walls, ceiling, all services
02

Material Selection at the Showroom

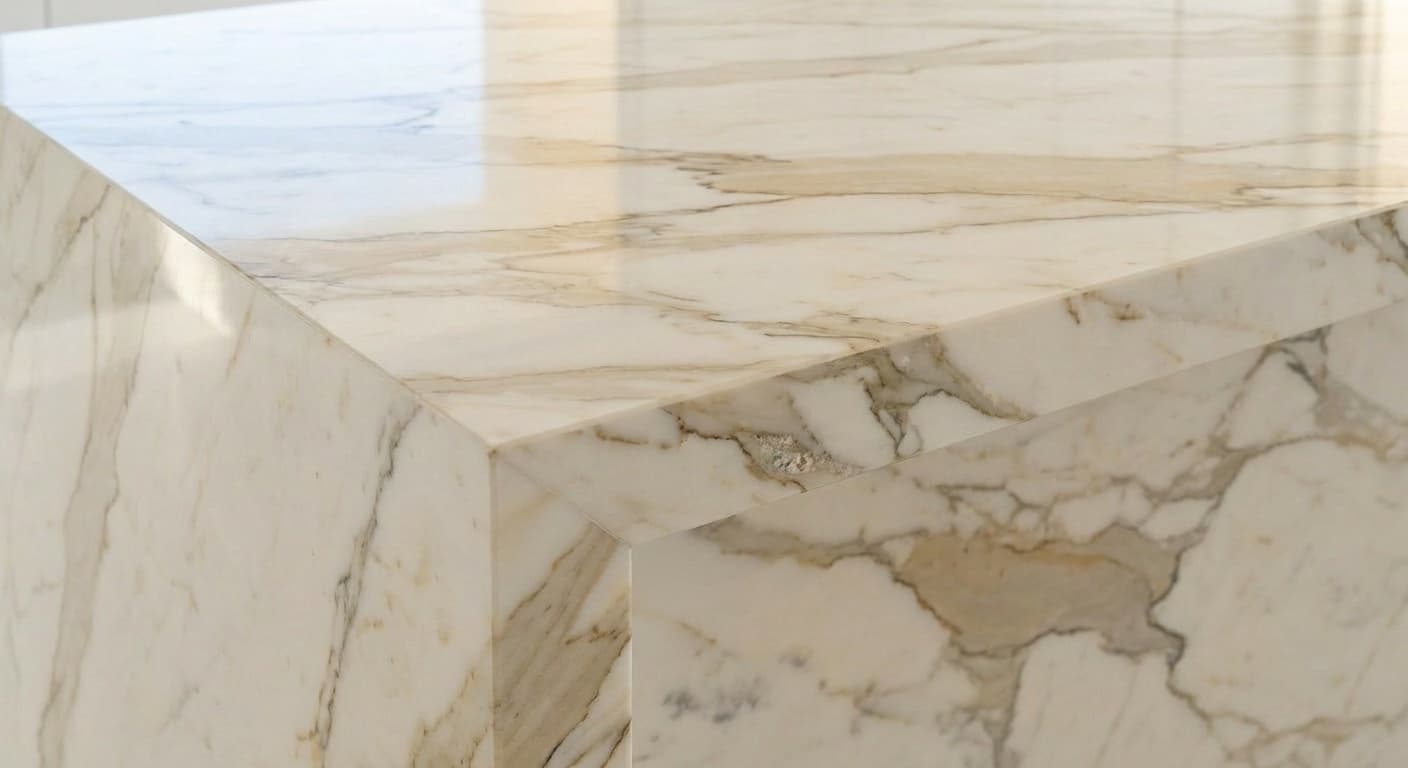

Calacatta Gold marble slab — showroom selection

The client visited our Marbella showroom for a two-hour selection session with our interior design team. The starting point was the cabinetry colour: the client was initially drawn to a warm off-white but after seeing large-format door samples in natural light, chose pure white lacquer (RAL 9016) for its cleaner contrast with the marble and the sea. For the island worktop, three stone slabs were shortlisted in the showroom: Statuario Bianco, Calacatta Michelangelo and Calacatta Gold by Porcelanosa — ultimately chosen for its warm gold veining which picks up the brass detail in the pendant lights. The Bianco Puro 120×60 cm floor tile from Casalgrande Padana was selected over four alternatives because of its near-matte finish that conceals footprints and coastal sand. Every Siemens appliance was reviewed on a working display kitchen in the showroom before specification.

Technical Specifications

Cabinetry finishWhite lacquer RAL 9016, push-to-open handleless, Blum Blumotion soft-close hinges
Island worktopCalacatta Gold by Porcelanosa, 20 mm polished slab, full-length waterfall edge
Floor tilesCasalgrande Padana Bianco Puro 120×60 cm, semi-matte finish, 1.5 mm joints
Pendant lights3 × Flos IC Lights S brass/glass pendants over island, 2700 K warm
Appliances brandSiemens iQ700 series — all fully panel-integrated
03

Demolition & Preparation

Demolition took 3 days. The non-structural wall was removed using a combination of angle grinder and chisel to minimise vibration and dust spread to the rest of the apartment. An RSJ steel lintel (152×152×23 UB) was installed across the full opening width of 2.4 m, bearing on padstones built into the existing masonry piers. All existing tiles — floor and wall — were stripped back to the concrete slab and block substrate. The concrete floor was then diamond-ground flat to a ±1.5 mm tolerance across the full 18 m², a critical step to ensure the large-format floor tiles lay without lippage. All walls were dot-and-dab boarded with 12.5 mm moisture-resistant plasterboard. New electrical first-fix was routed: dedicated 32A circuit for oven, 20A for induction hob, 16A for dishwasher, separate RCD-protected ring for lighting.

Technical Specifications

Wall removal2.4 m wide × 2.4 m high non-structural wall removed, RSJ 152×152×23 UB lintel inserted
Floor levellingDiamond grinding + self-levelling compound 6 mm, ±1.5 mm tolerance across 18 m²
Wall substrate12.5 mm moisture-resistant plasterboard on metal stud framing, skim-coated
Electrical first-fixNew dedicated circuits: 32A oven, 20A hob, 16A dishwasher, 3× 16A socket ring, dimmable LED circuit
04

Cabinetry, Worktop & Appliance Installation

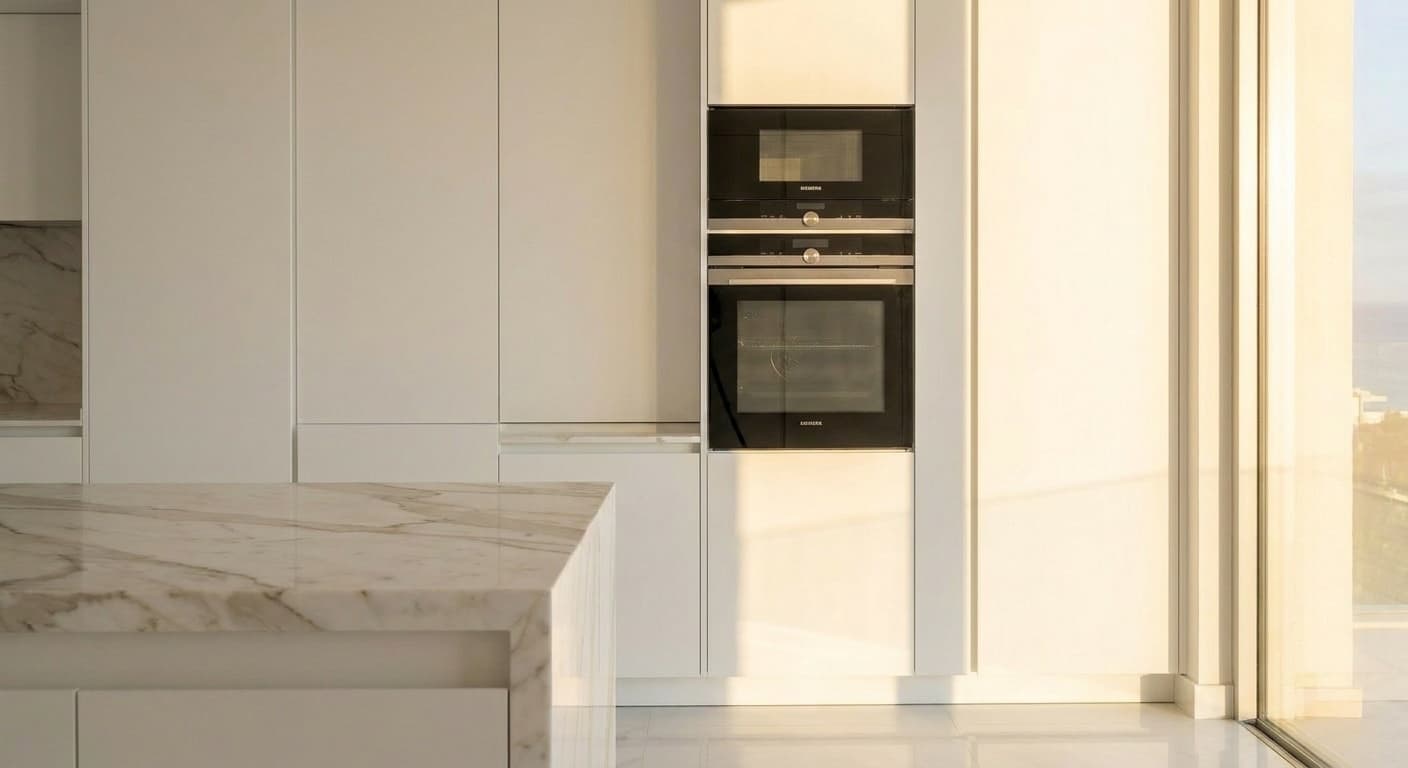

Siemens iQ700 appliance tower — oven and microwave in white lacquered surround

The bespoke cabinetry was manufactured in our workshop and delivered in flat-pack carcasses. Installation followed a precise sequence: base units first, levelled using adjustable feet to achieve a continuous flat run; then the Calacatta Gold island worktop was templated in the space (a flexible digital template was taken after all cabinets were set) and fabricated off-site, returned in one single 2.4 m slab with the waterfall panel cut from the same block to match the veining. The slab was craned through the penthouse terrace as it could not navigate the stairwell. All Siemens iQ700 appliances — pyrolytic oven, combination microwave, fully integrated dishwasher, fully integrated fridge-freezer column — were installed and tested before the matching panel doors were hung. The flush-mount induction hob (Siemens EX877LX67E, 80 cm FlexInduction) was cut directly into the island marble with a 5 mm polished mitred edge around the perimeter. The concealed extractor (Siemens LB97574M1) is housed inside the upper cabinet, recirculating at 750 m³/h.

Technical Specifications

OvenSiemens HB672GBS1 iQ700 pyrolytic 71 L, black glass, eye level — visible
MicrowaveSiemens CM776GBS1 combination 45 L, black glass, above oven — visible
Induction hobSiemens EX877LX67E FlexInduction 80 cm, flush-cut into marble island, frameless
DishwasherSiemens SN678X36TE iQ700 fully integrated 60 cm, white lacquered panel — INVISIBLE
Fridge-freezerSiemens KS36VBWDP freestanding column, fully integrated white panel — INVISIBLE
Concealed extractorSiemens LB97574M1 integrated, 750 m³/h, recirculating activated carbon, inside upper cabinet
05

Finishing, Lighting & Final Details

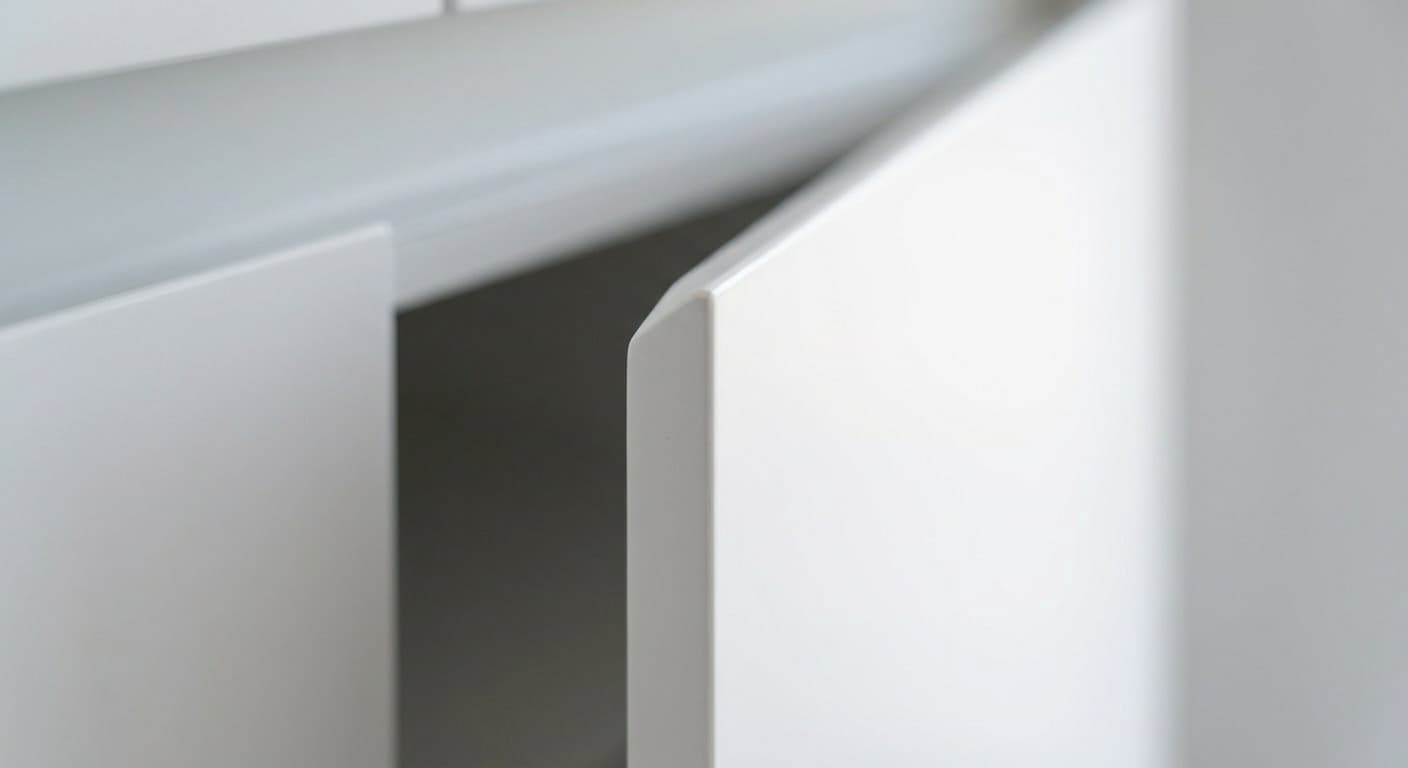

Handleless cabinet door edge — push-to-open lacquer detail

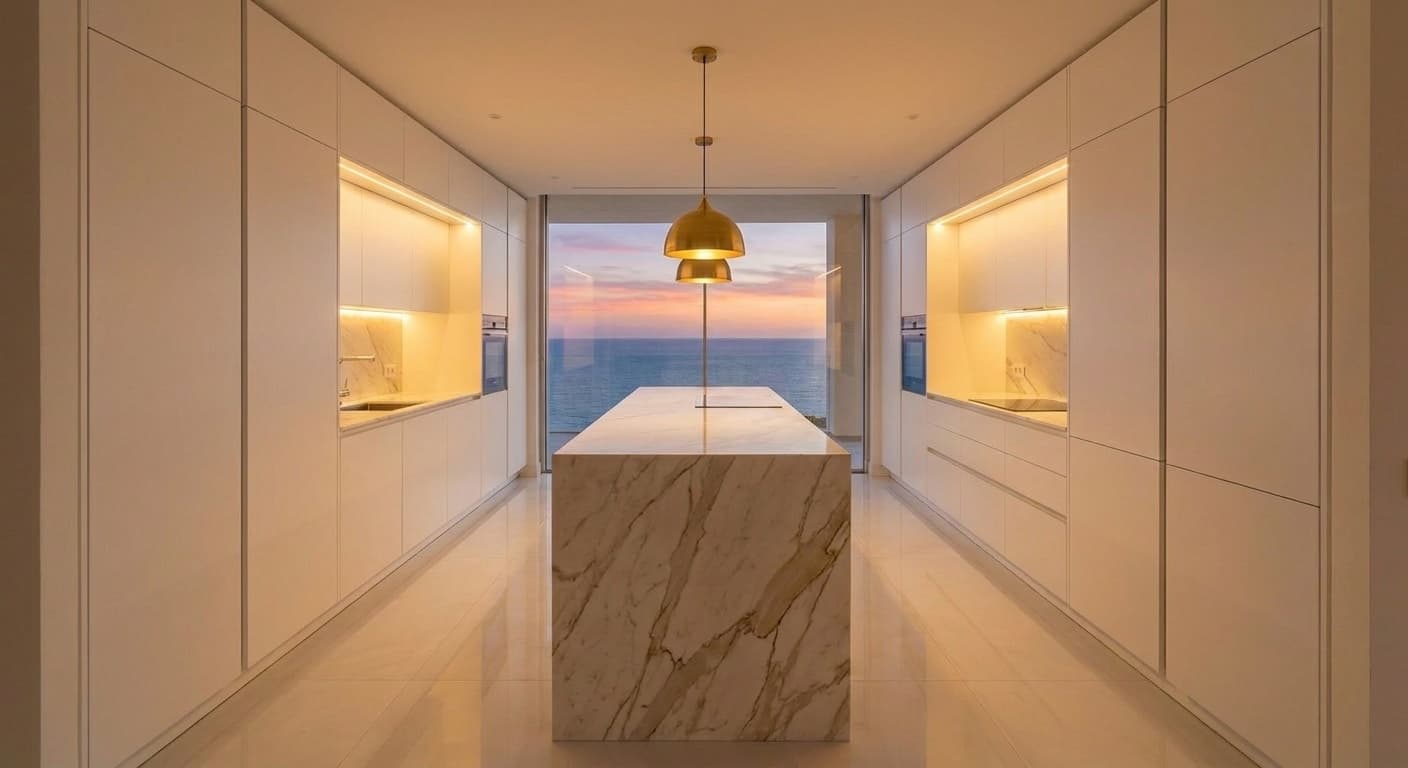

Evening mood — under-cabinet LED and brass pendants

The 120×60 cm Bianco Puro floor tiles were laid in a continuous running bond with 1.5 mm laser-guided joints and grouted in ivory epoxy (Mapei Kerapoxy CQ) for zero-maintenance hygiene. Walls above the worktop and behind the hob received a full-height back-painted glass splashback in white, bonded directly to the plasterboard for a seamless flush surface. The lighting design uses three independent circuits: a dimmable recessed GU10 grid (18 × Philips CorePro GU10, 3000 K) for general task lighting; warm LED under-cabinet strips (Philips Hue Gradient Lightstrip, 2700 K) that create an ambient glow on the marble worktop; and the three brass Flos IC Lights pendants above the island for atmospheric dining light. A final snagging visit 10 days after completion addressed four minor items — one door alignment, two grout touch-ups, and a drawer soft-close adjustment — all resolved within a half-day.

Technical Specifications

Floor groutingMapei Kerapoxy CQ epoxy grout, ivory, 1.5 mm joints — hygienic and stain-proof
SplashbackFull-height back-painted white glass panels, direct-bonded, seamless — no grout lines
Task lighting18 × Philips CorePro GU10 5 W 3000 K, dimmable, white bezel recessed, 3 circuits with trailing-edge dimmers
Under-cabinet lightingPhilips Hue Gradient Lightstrip 2700 K, full-length under all upper cabinets, app-controlled
Island pendants3 × Flos IC Lights S2 brass/blown glass, E27 LED 6 W 2700 K, height-adjustable
06

How We Work With You

Every Magnum Reformas project begins with a free site visit from a dedicated project manager — no obligation, within 48 hours of enquiry. We provide a fully itemised fixed-price quote: every line of work is listed, nothing is hidden. Once approved, our team manages every trade on site so you never coordinate subcontractors yourself. A dedicated WhatsApp group keeps you updated with photos and videos throughout. At handover, we walk you through every installation and leave you a full documentation pack.

Technical Specifications

Site VisitFree, no obligation, within 48 hours of enquiry
Fixed QuoteFully itemised, fixed price — no hidden extras
Material SelectionEvery finish chosen by you at our Marbella showroom
Weekly ReportingPhoto & video updates via WhatsApp or email throughout the build

Photo Gallery

White marble kitchen — full overview
Calacatta Gold marble surface macro
Siemens iQ700 appliance tower
Handleless lacquer cabinet edge
Evening lighting — brass pendants and under-cabinet LEDs

Outcome

+38% nightly rate post-renovation

The penthouse re-listed within 3 weeks at a substantially higher nightly rate, with year-round occupancy returning to pre-renovation levels in under two months.

+38%Nightly rate uplift
< 2 monthsOccupancy recovery
21 daysTime to re-list
4.6 → 4.9 ★Average guest rating

Figures shared with the owner's permission and rounded for confidentiality. Past performance does not guarantee comparable outcomes on other properties.
